Exquisite detailing

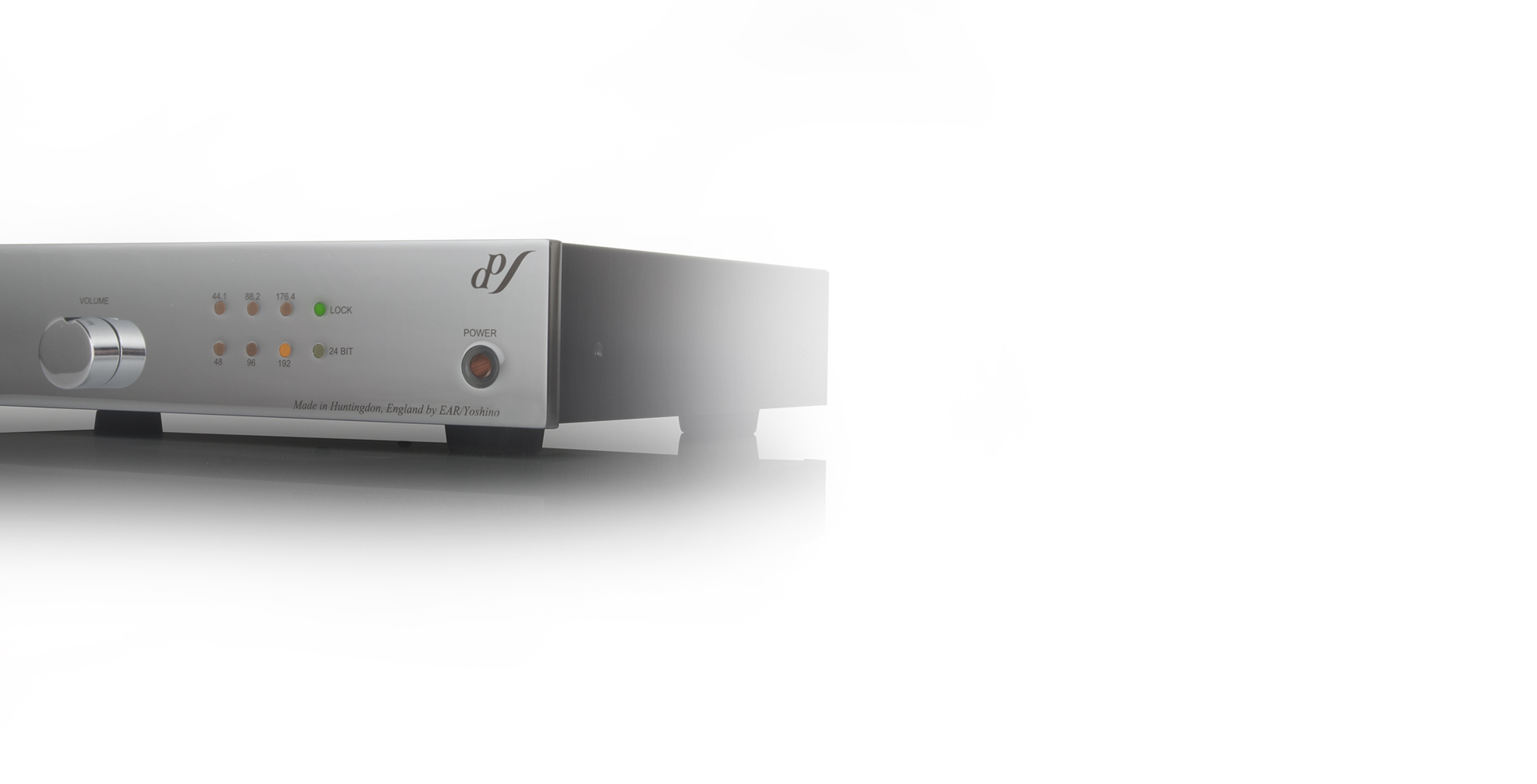

The EAR Dac 4 is an amalgamation of technology and classic craftsmanship. The design is built with a precision machined chrome plated facia, equipped with a matching volume control and punctuated by discrete LED indicators. Machined chromed buttons further compliment the design and inform of its solid construction.
The Dac 4 will be a focal point of your digital media and can be accessorised with the EAR Acute 4 for all of your audio disc needs.
Limitless possibilities
Connect to multiple devices with the EAR Dac 4 boasting seven separate audio inputs. USB, AES, two SPDIFs, Toslink, EAR AcuteLink and analogue audio.
You can now realise the true potential of digital audio formats into your system. It’s not just limited to digital content with the inclusion of an analogue audio input, such is the versatility of this product.
Complete freedom of use
Nothing comes between you and the music you love. The EAR Dac 4 can handle all the popular formats up to 192 KHz
24 bit audio, enabling you play high resolution formats. This DAC will open up your digital world.
With the addition of DSD compatibility, you can play DSD files over USB natively. It makes the Dac 4 capable of so much more than you ever imagined.
Accessory for your optical disc needs.
Pair the EAR Dac 4 with the Acute 4 transport to relisten to your music in full fidelity.
Read more
Double the output
Building upon EAR Yoshino’s success of the EAR DACute and Acute 3, Tim de Paravicini redesigned the output stage from the ground up. It now comprises of four PCC88 valves and circuitry to match. Integrating the valves, the circuitry, the transformers and digital chips to all work together creates the best possible experience. Leaving you with sensational audio.
Bespoke from the ground up
Having an all new design, the output transformers needed to match the electronic capabilities of the new four valve output stage. Built with solid construction, these transformers are more than 30% larger by volume than their predecessor giving an exceptional signal to noise ratio. These custom designed transformers are hand wound in Cambridgeshire and complemented by the most stringent of criteria for this amazing product.
Two brains are better than one
Everything you do with the EAR Dac 4 stems from its core. When you have great a digital engine, the whole experience becomes better. Thats why the Dac 4’s digital decoder now utilizes two Wolfson WM8741 DACs, each configured in bridged mono. Each individual channel is connected to it’s own analogue output and transformer negating the need for any detrimental solid state signal conversion and buffering. When you can’t hear the digital processing, you hear the whole sound. Or note. Or song. In ways you’ve never experienced before.
Valves
Four PCC88 (6DJ8)
Audio Playback
Audio Formats supported:
SPDIF and AES 44.1K - 192 KHz, 16-24 bit
Toslink upto 88KHz 24bit
DoP V1.0 (DSD over PCM)
USB 2.0 (PC/MAC) 44.1K - 192KHz, 16-24 Bit
Connectivity
One Stereo Analogue Input (RCA)
One USB Input (PC and MAC)
Three SPDIF Inputs (RCA, BNC & Toslink)
One AES Input (3 pin XLR)
One AcuteLink Input (5 pin XLR)
One Line Output (RCA)
One Balanced Output (XLR)
Performance
Total Harmonic Distortion: 0.1%
@ 5 Volts 20Hz~20KHz
Signal to Noise 95db 40KHz Bandwidth
Dimensions & Weight
Weight: 8.50kg (18.7lb)
Width: 435mm (17.2”)
Depth: 285mm (11.2”)
Height: 65mm (2.7”)
Power
Power Consumption: 30 watts
240 volt / 110 Volt / 100 Volt
(depending on model)
